Alta-Developed Generic Swimming Pool

Engineering Design Template

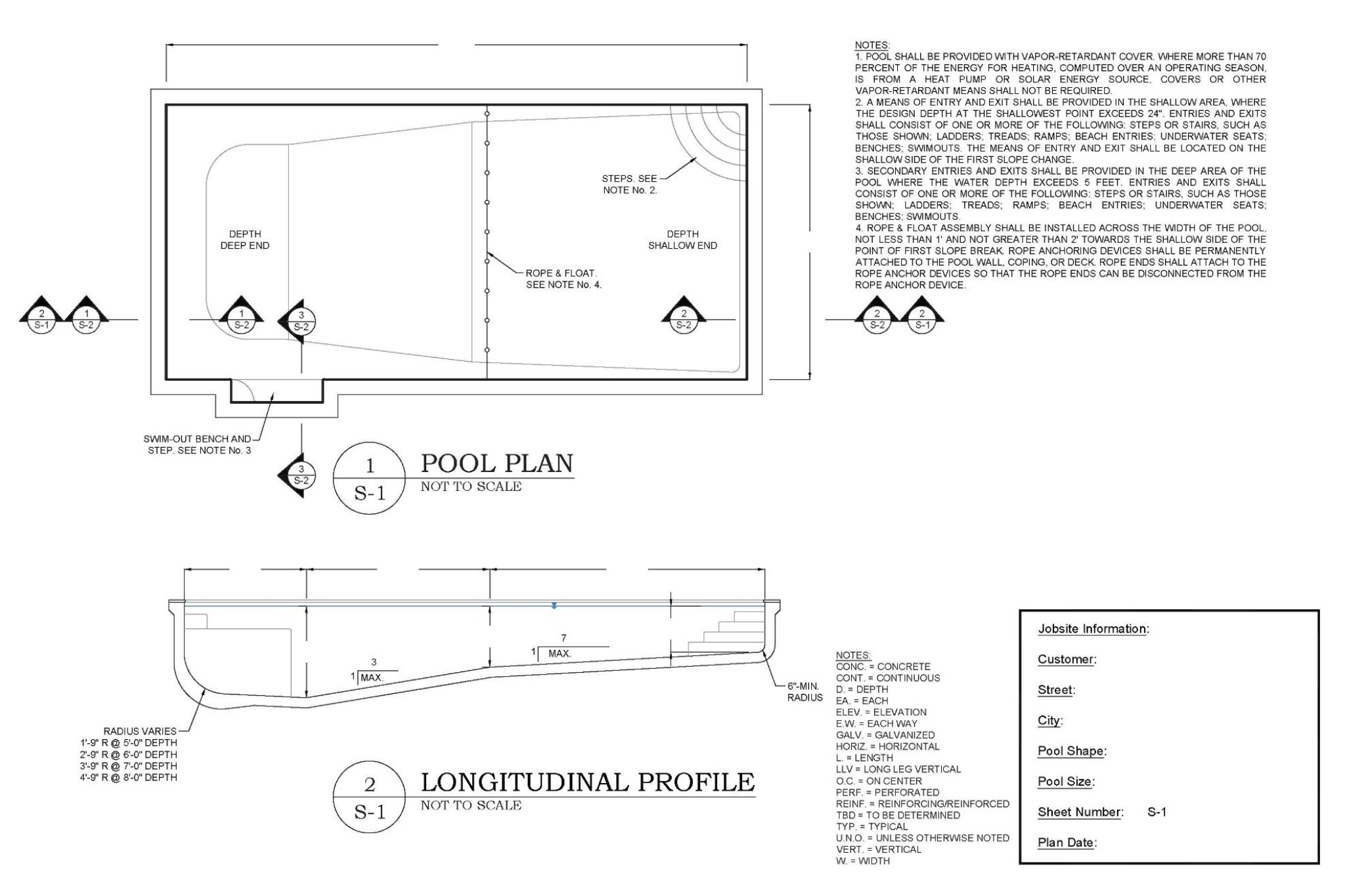

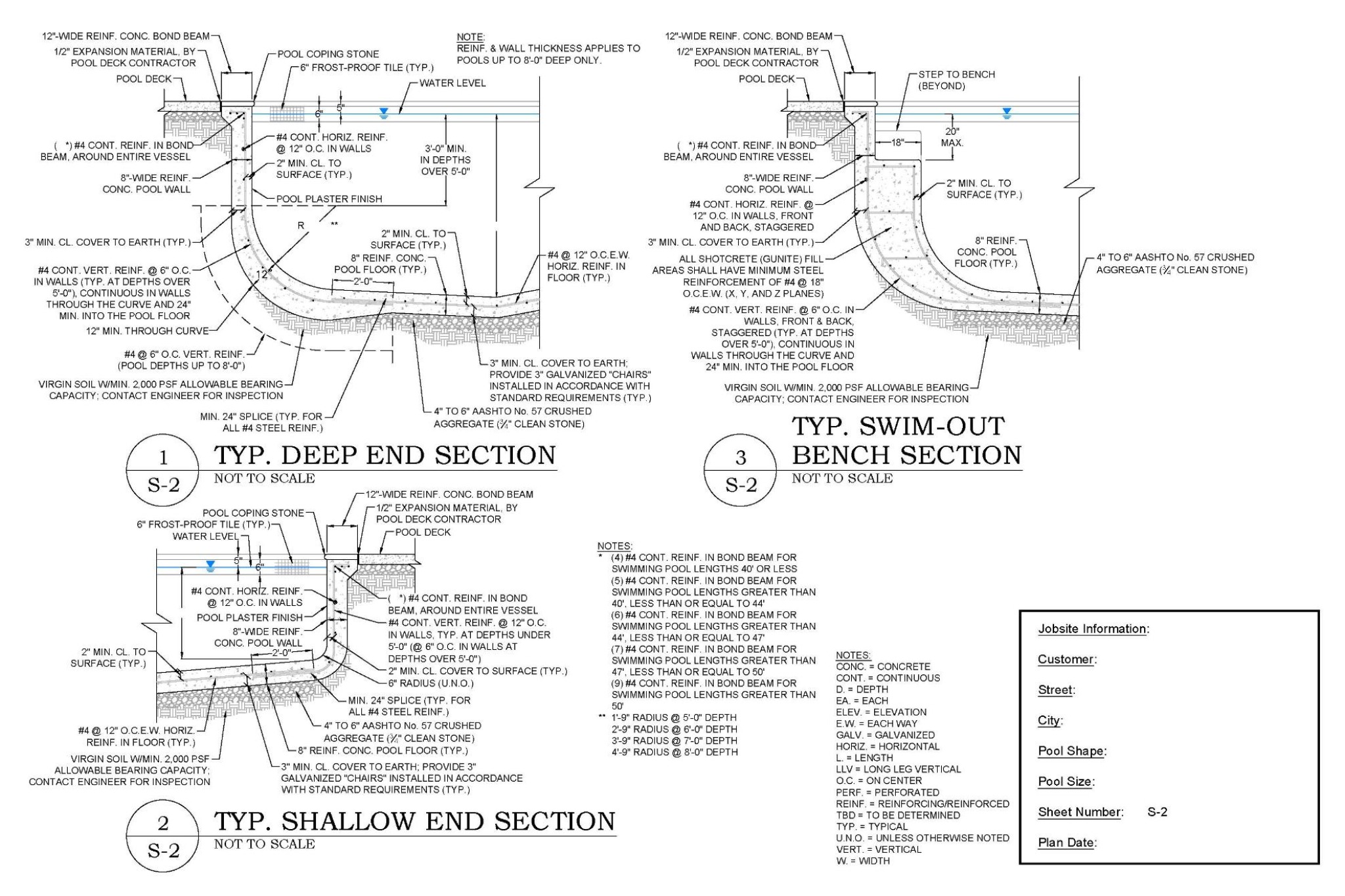

The plans presented in the images below represent a generic design template, developed by Alta, for a basic swimming pool design with associated standard details. These plans show the minimum that is provided by Alta for any swimming pool project. We also provide custom-engineered design details for all swimming pool features not shown in these plans, including spas, sun decks, grottos, waterfall features, raised beams, etc., as well as any site-specific structural and geotechnical engineering support requirements. Therefore, the number of plans, details, etc., that we provide increases from what is shown here, depending on your needs and the complexity of the project. We also perform detailed hydraulic (plumbing) calculations and design drawings, as needed, to ensure that your swimming pool plumbing and equipment is properly and adequately sized for peak performance.
